Wir haben viele OV5640-Kameramodule in verschiedenen Typen hergestellt. Wie das Autofokus-OV5640-Modul, die OV5640-Kamera mit festem Fokus und das DVP-Mipi-Kameramodul mit unterschiedlicher Schnittstelle und Autofokus-OV5640-Sensor. Bitte kontaktieren Sie uns bald, damit wir Ihnen die vollständigen ov5640-Moduldetails entsprechend bereitstellen können.

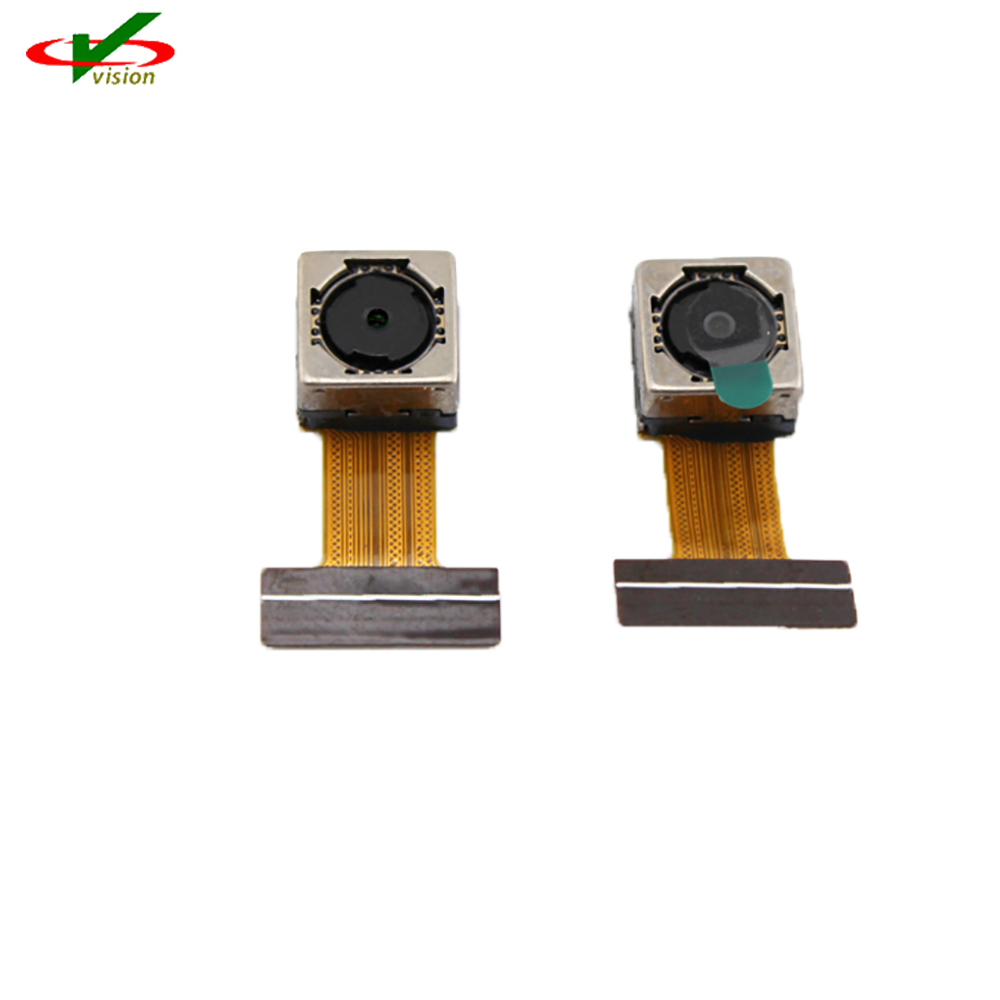

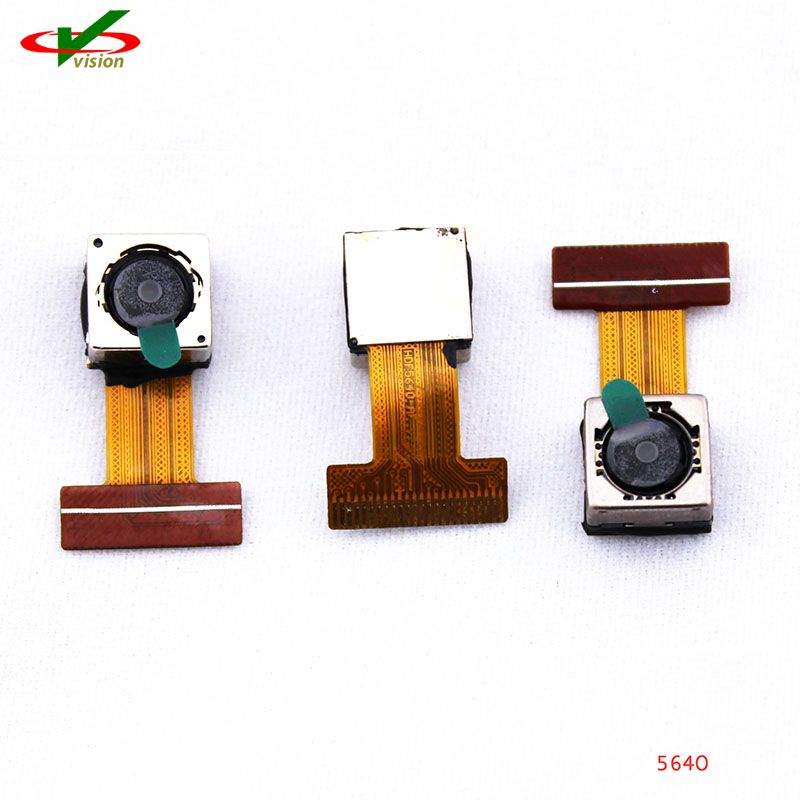

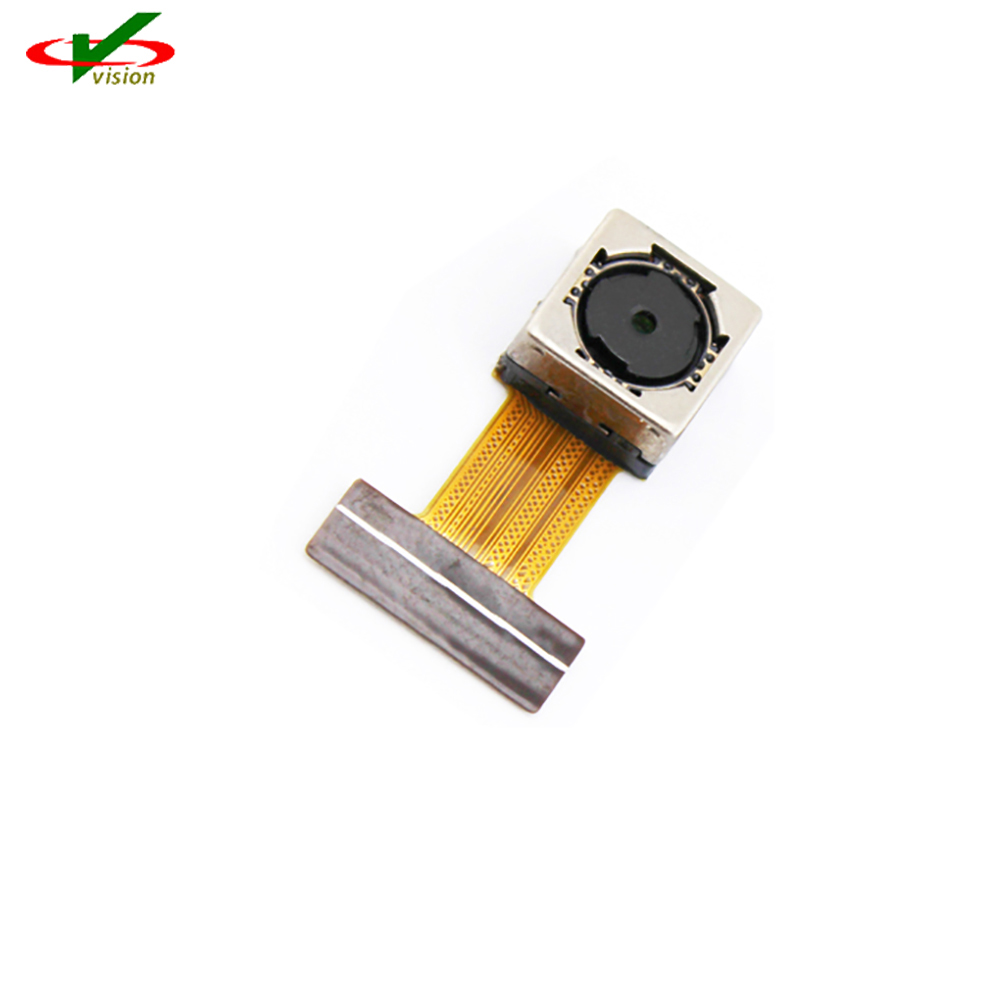

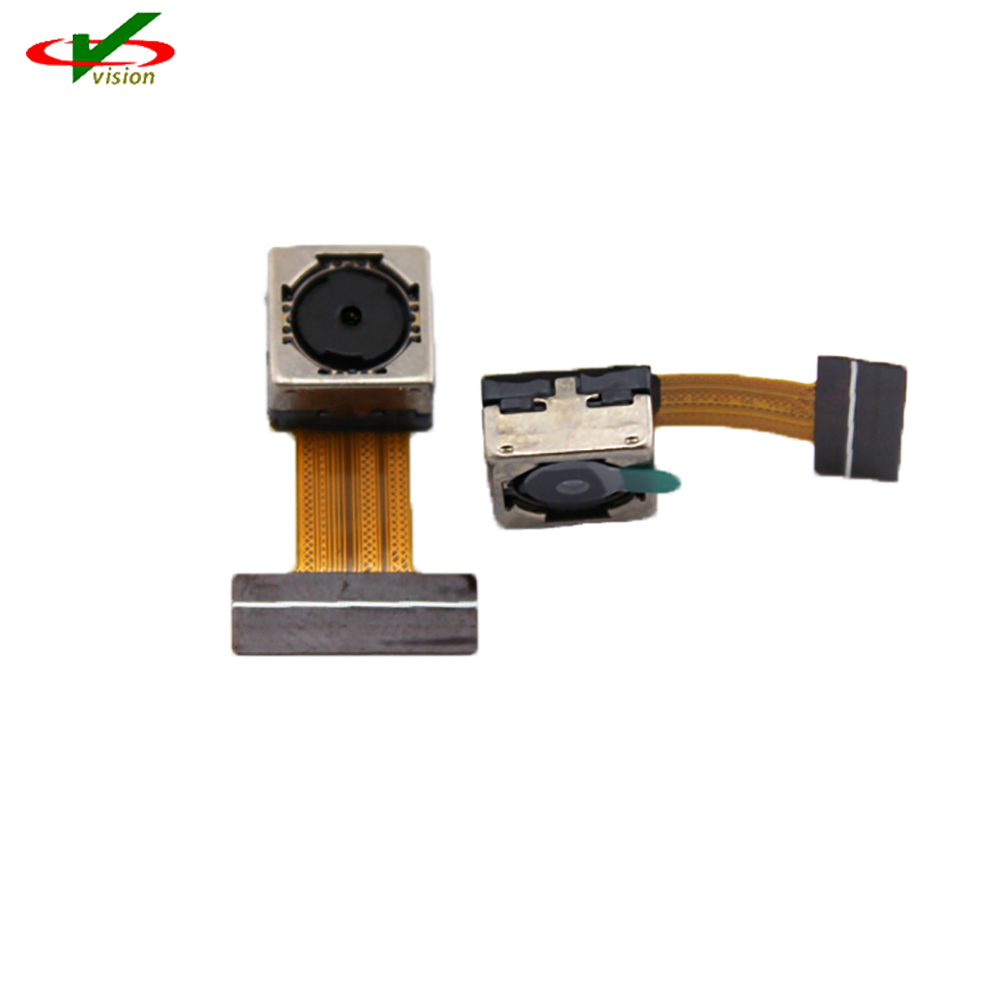

Das Auto Focus OV5640 Sensor DVP MIPI-Kameramodul bietet eine komplette 5-Megapixel-Kameralösung mit einem Chip, die darauf abzielt, Kosteneffizienz zu bieten und den Markt für Autofokus-Kamerahandys mit hohem Volumen zu bedienen.
Aktive Array-Größe: 2592 x 1944
Stromversorgung:
Kern: 1,5 V ± 5 % (mit integriertem 1,5 V-Regler)
analog: 2,6 ~ 3,0 V (2,8 V typisch)
E/A: 1,8 V / 2,8 V
Leistungsbedarf:
aktiv: 140 mA
Standby: 20uA
Temperaturbereich:
Betrieb: -30℃ bis 70℃ Sperrschichttemperatur
Stabiles Bild: 0℃ bis 50℃ Sperrschichttemperatur
Ausgabeformate: 8-/10-Bit-RGB-RAW-Ausgabe
Linsengröße: 1/4"
Hauptstrahlwinkel der Linse: 24°
Eingangstaktfrequenz: 6~27 MHz
Max. S/N-Verhältnis: 36 dB (maximal)
Dynamikbereich: 68 dB bei 8-facher Verstärkung
Maximale Bildübertragungsrate:
QSXGA (2592 x 1944): 15 fps
1080p: 30 fps
1280x960: 45 fps
720p: 60 fps
VGA (640x480): 90 fps
QVGA (320x240): 120 fps
Empfindlichkeit: 600 mV/Lux-Sek
Verschluss: Rolling Shutter / Einzelbildbelichtung
Maximales Belichtungsintervall: 1964 x tROW
Pixelgröße: 1,4 um x 1,4 um
Dunkelstrom: 8 mV/s bei 60 ℃ Sperrschichttemperatur
Bildfläche: 3673,6 um x 2738,4 um
Verpackungsabmessungen: 5985 um x 5835 um
Handy
Spielzeuge
PC-Multimedia
Digitale Fotokameras
